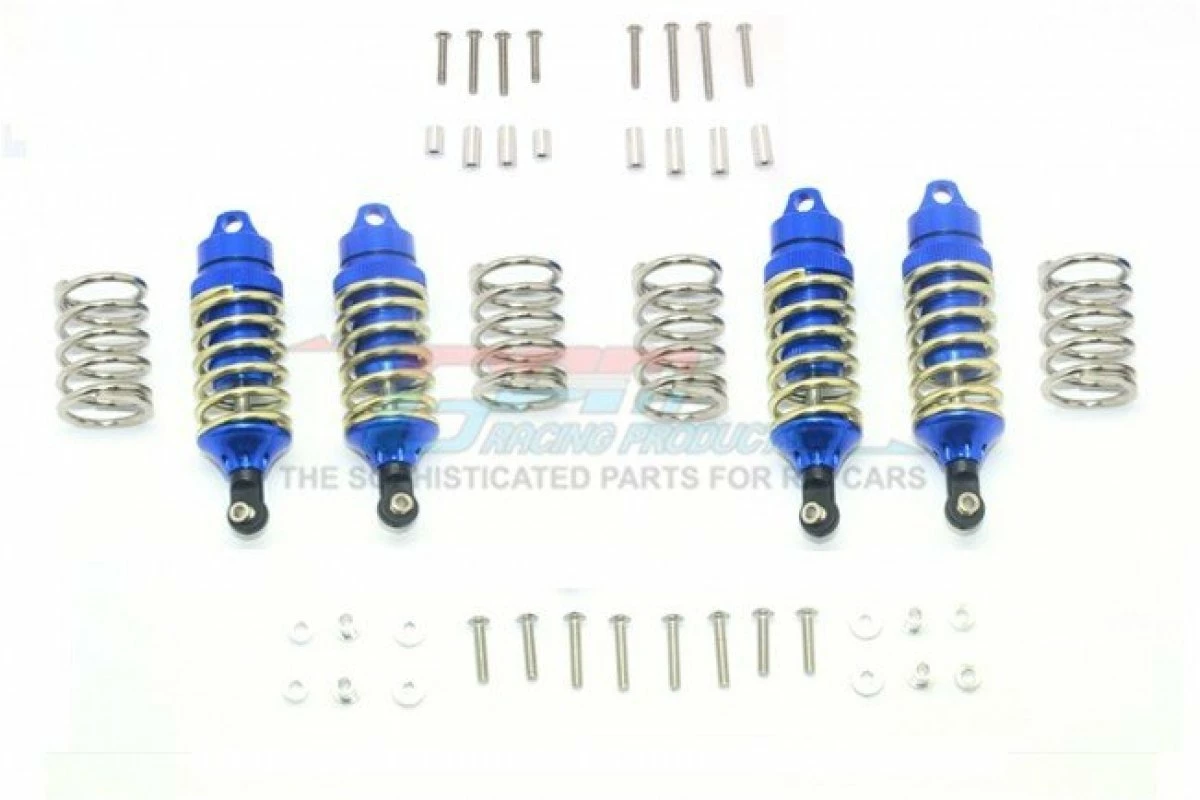

GPM Racing – TRAXXAS – SLASH 4×4 – RUS47580FR RUSTLER VXL Aluminum Front+Rear Shocks (Low Center Of Gravity Version) 44pc set
Original Name / Part No.: 6864+6867
Part location: Front & rear shocks position
Is this part adjustable? YES
How: Adjust the screw on top of spring or change to another spring.
Purpose: Adjust the hardness of the shocks.
This product includes :
Front Shock 2pcs
Rear Shock 2pcs
Short Spring 2pcs
Long Spring 2pcs
Stainless Steel Round Head Screw 3×14 4pcs
Stainless Steel Round Head Screw 3×16 6pcs
3x6x2.5 Aluminum Collar 4pcs
3m Collar 4pcs
3m Washer 4pcs
3x6x8 Aluminum Collar 2pcs
3x6x12 Aluminum Collar 4pcs
3x6x16 Aluminum Collar 2pcs
Stainless Steel Round Head Screw 3×20 4pcs
Stainless Steel Round Head Screw 3×25 2pcs
Major advantages of upgrading to this part/product :
1. The product is made thicker than original with different spring coil: Gold (on product) 2.6mm. Silver (separate ones) 2.2mm for more powerful and stable use.
2. Shocks are made shorter than original: Front 75mm. Rear 80mm…this helps lower the vehicle (can go as low as 6mm from ground).
3. Upgrade to this products to suit a more high-speed drive on flat surface roads.
Note: When use on Slash: As the body is lowered, the shell will hit the tire, please use the aluminum collars between the body post and the shock mount to support the shell. Use different size collar for different adjustment of the shock angle. When the body is at the highest, use front 8mm with rear 12mm collars. When the body is at the lowest, use front is 12mm with rear 16mm collars.
Suitable for TRAXXAS RUSTLER 4X4 VXL 67076-4, SLASH 1/10 4X4, SLASH 1/10 4X4 LCG, SLASH 2WD
Specifications
| Shock Absorber | |
|---|---|
| Oil Included: | Yes |
