Major advantages of upgrading to this part/product :

1. Built-in temperature sensor, control fan on or off automatically.

2. High-speed fan for high airflow – up to 3.25CFM (±10%).

3. Material: Main body: Aluminum + stainless steel. Cover + exhaust pipe: Black heat resistant ABS plastic.

4. Temperature sensor: Power supplies at 35°C (± 5 ° C). Reset at 25°C (± 5°C). Temperature sensor is welded to the fan.

Other special notes and comments:

Measurements: 52mm x 63mm x 71mm

When install on TRX-4 Defender:

1. The manifold side needs to be removed to have enough room for installation.

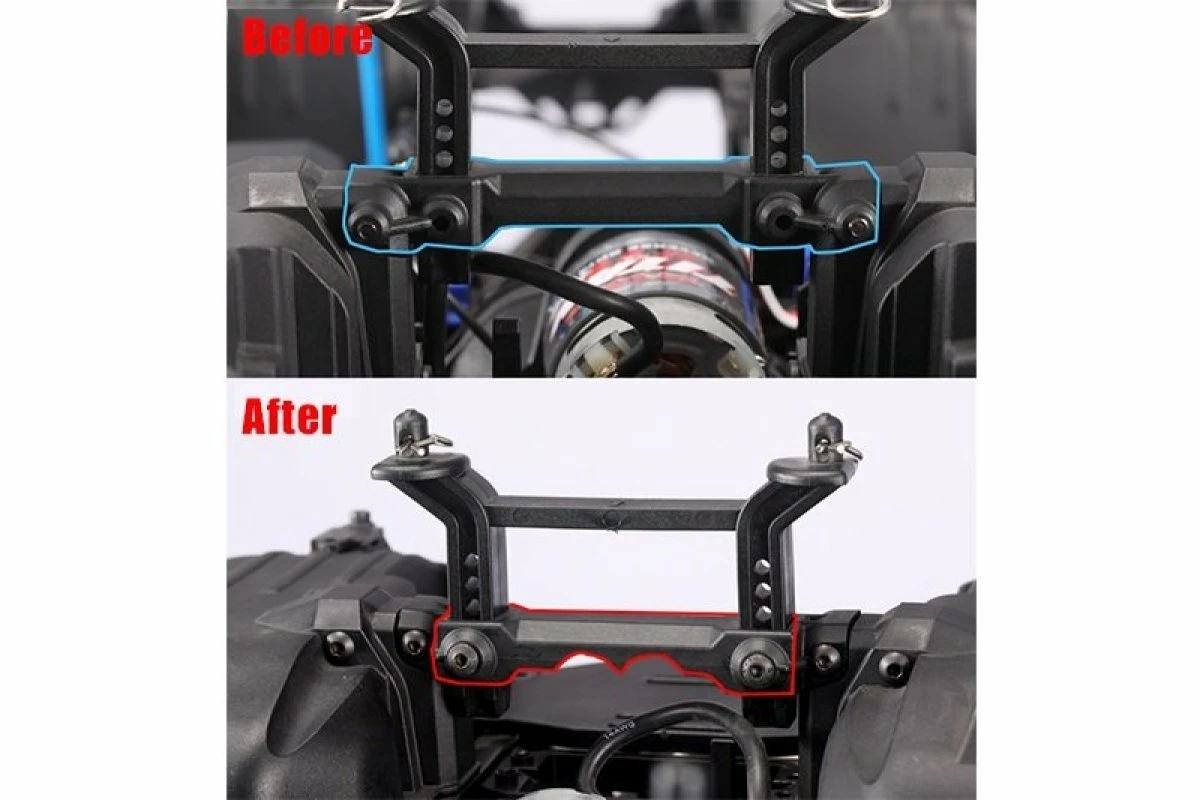

2. The crossbar on original body post needs to be trimmed to the position of the intake pipe in order for installation (see picture).

If you have modified the engine to a front engine setting:

1. Remove the manifold and install it directly on the original damper mount and fender.

2. To install the manifold, you must use GPM Racing #TRX4028 front damper mount or other flat style mounts to have enough room for the left and right manifolds.

Specifications

Electric Vehicle Accessory
Electric Vehicle Accessory Type:	Cooling
